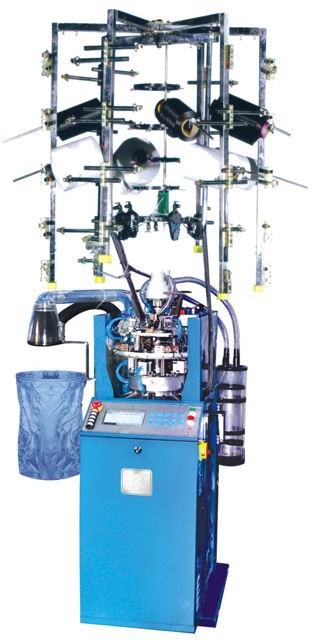

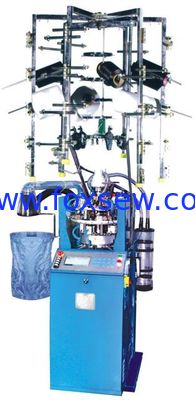

FOXSEW Jacquard silk socks knitting machine is controlled by a computer system with a single cylinder four-woven plain weave silk stockings machine. It adopts an independent exhaust fan or central exhaust system fabric stretch. the machine is equipped with torsion device, needle rotation servo motor direct drive to reduce the transmission chain and transmission error. Needle lift by the stepper motor control can have a different density pressure lubricant for lubrication of needles, life and death and the election needle pieces. Computer controls production of socks, the whole process, style and quality. The machine can use synthetic fibers and bare spandex covered yarn and other raw materials to produce stockings and products, including pantyhose, long stockings, short socks, T stockings and other nine points stockings.
Complete Machine Consumption:1.5kw
Average Output:350 pieces of panty-hose every 24 hours.600 pairs of jacquard socks every 24 hours
Drive System: Direct Drive Servo Motor Synchronous Belt Drive
Autos top: Auto stop for broken yarn by infrared
Oil Feeding System: Full-Automatic Oil Feeding Apparatus
|
Model |
Needle Cylinder |
Needle No. and Needle Selections |
Specifications |
Brief Introduction to function |
|
FX-E12 |
4 Inch |
Standard 400-NeedleEight-Class Pneumatic Needle Selection at NO.1 Group and NO.8 GroupNO.2Group and NO.4 Group and |
the Highest Speed:800RPM.7Millmeter Needle Latch |
Different selected float covering yarns, plain weave,1×1.3×1 fixed grid mesh, T class 1×1 middle reinforce. all kinds of covering yarns |
|
FX-E7 |
four 400-needle electronic needle selectors |
the Highest Speed: Plain Weave:800RPM,Jacquard:500 RPM, subject to actual cam angel |
Different selected float covering yarns, plain weave grid mesh, twill weave grid mesh. yarn-added jacquard and jacquard design |
