Description:

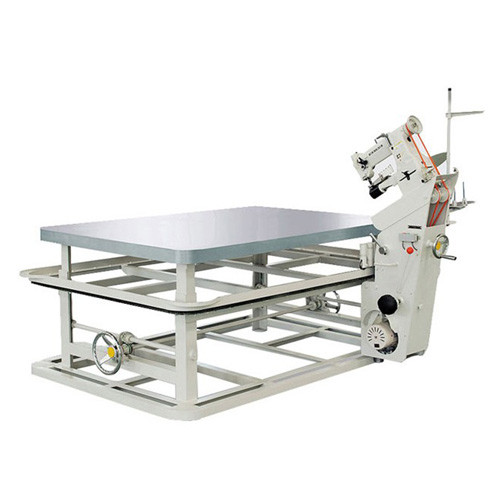

This mattress tape edge machine is mainly used for tape edging of mattress panel, sleeping bag and tent.
Technical features:
1. Equipped with imported or China-made sewing head according to customers requirement.
2. Hand-controlled lifting table, hand-controlled titling of sewing head.
3. Hand-controlled speed for moving of carriage and sewing, hand-controlled slowdown at corners.
4. Straight, even and trim seam.
5. Low noise, low vibration, stable performance.
Main Technical Parameters:
Thickness Of Mattress: (40-300)mm
Table Lifting Range: 260mm
Max Tilting Angle: 40
Power Supply: Single-Phase, 220V, 50Hz
Table Size: 1930×1300mm
Overall Dimension: 2130×2010×1565mm
Total Power: 400W
Total Weight: 464Kg
Capacity: 15units/h
