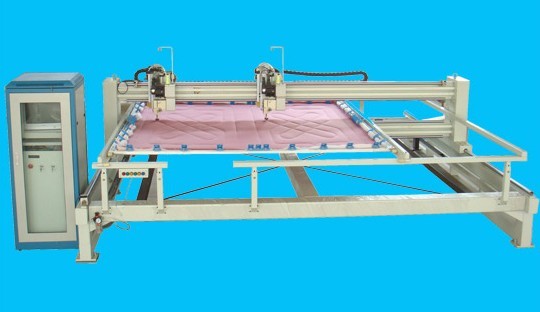

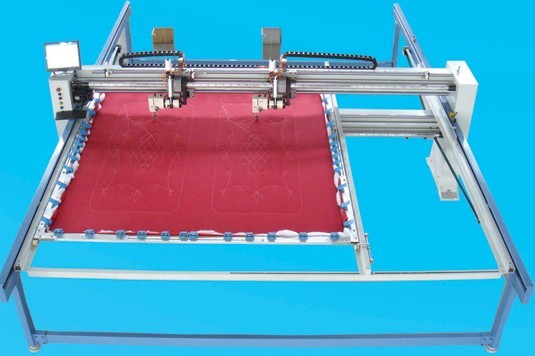

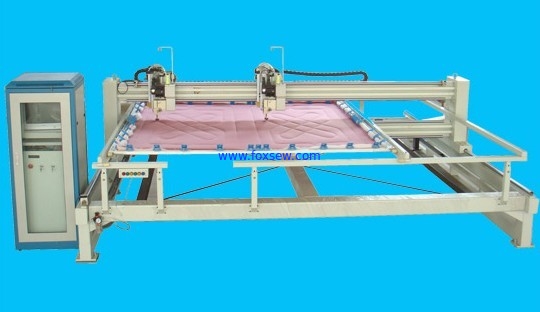

Multi-Head Computerized Quilting Machine FX6-2
-
-
Large Image :
Multi-Head Computerized Quilting Machine FX6-2
|
Product Details:
Place of Origin: |
CHINA |
Brand Name: |
FOXSEW |
Certification: |
CE |
Model Number: |
FX6-2 |
Payment & Shipping Terms:
Minimum Order Quantity: |
1 PCS |
Packaging Details: |
CARTONS |
Delivery Time: |
7 DAYS |
Payment Terms: |
T T, LC |
|
Detailed Product Description
-
Product Details: Multi-Head Computerized Quilting Machine
Uses:
Quilt, coverlet, bedcover, sponge, leather and so on.
Details:
-
The head moves along X axis, and the frame moves along Y axis.
-
Work efficiency is double the single head quilting machine.
-
Each head can work independently.
-
Using special technology, the quilt can't be broken.
-
Using four servo motors.
-
Using good quality hardware and software, the right-angle, sharp-angle and circle can be well quilted.
-
15" color monitor, Chinese or English character, on which pattern, stitch distance, current stitch, rotation speed can be displayed.
-
Using industrial mainboard, Floppy disk and USB disk can be employed to input patterns.
-
Use the world’s most popular Tajima(dst) format pattern design files.
-
Upper thread breakage detection system: when the thread breaks, machine would stop.
-
Quilting pattern storage: about 200 patterns kept in the computer, also can be read from floppy.
-
Zoom the pattern by 1 cm step.
-
Retreat requiting.
-
Automotive backtack at every start and stop during the pattern cycle.
If shut off electricity, program would be kept in the computer.
-
Safety device: when an exception occurs, machine will stop automatically and the reason will be displayed on the screen.
Parameters:
Machine Area
|
Quilting Area
|
Rotary Hook
|
Needle
|
Stitch Length
|
Max Rotate Speed
|
Power
|
Power Consumption
|
4.2m*5.5m
|
2.8m*3.0m
|
Big Rotary Hook
|
MR3.0-5.0
|
2mm-8mm
|
2200RPM
|
Single-phase 220v 50hz
|
<2KW
|
