Mattress Tape Edge Sewing Machine FX-WB-3

Mattress Tape Edge Sewing Machine FX-WB-3

China Mattress Tape Edge Sewing Machine FX-WB-3 supplier

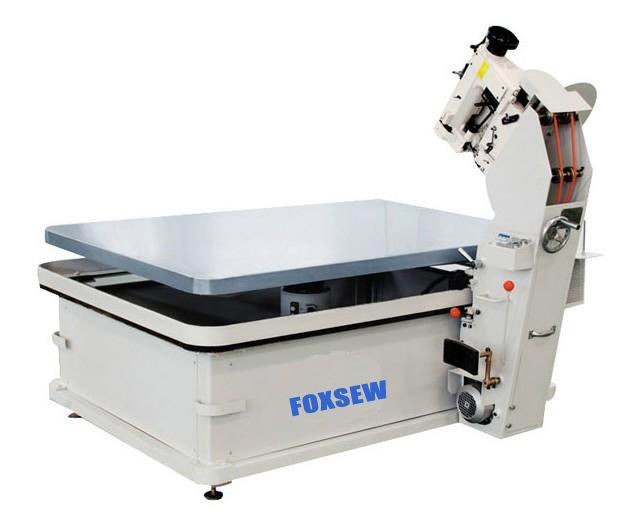

Large Image :  Mattress Tape Edge Sewing Machine FX-WB-3

Product Details:

Place of Origin: CHINA
Brand Name: FOXSEW
Certification: CE
Model Number: FX-WB-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Packaging Details: CARTONS
Delivery Time: 7 DAYS
Payment Terms: T,T LC
Contact Now
Detailed Product Description


This Mattress tape edge sewing machine is mainly used for tape-edging of mattress panel, sleeping bag and tent.

1. Advanced chainstitch sewing head.

2. Auto-lifting table, hand-controlled tilting of sewing head.

3. Variable speed for moving of carriage and sewing, auto-slowdown at corners.

4. Straight, even and attractive seam.

5. Stainless steel table top.

6. Equipped with level-adjusting device.

7. Low noise, small vibration, stable performance.

Main Technical Parameters:

Turning Speed Auto Slow Down

Sewing Head with Chainstitch or Lockstitch

Working Angel of the Sewing Head: 35-55°

Thickness of Mattress:(50-280)mm, (150-400) mm, (250-500)mm

Carriage Speed (m/min): 5.5-16

Table Lifting Range: 140mm

Table Size: 1950×1400mm

Sewing Head Speed (r/min): 1100-3000

Overall Dimension: 2380×1400×1650mm

Total Power: 1.2Kw

Total Weight: 598Kg

Power Supply: 1-Phase/3-Phase, 380V 50Hz

Capacity: 15units/h

Mattress Tape Edge Sewing Machine FX-WB-3
