Home ProductsProgrammable Pattern Sewing Machine

Programmable Electronic Pattern Machine

Programmable Electronic Pattern Machine

China Programmable Electronic Pattern Machine supplier
Programmable Electronic Pattern Machine supplier Programmable Electronic Pattern Machine supplier

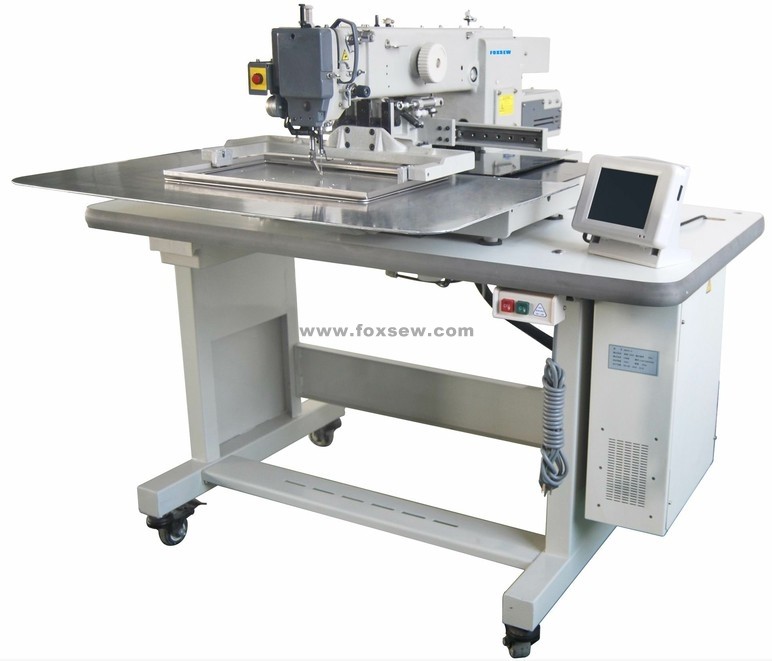

Large Image :  Programmable Electronic Pattern Machine

Product Details:

Place of Origin: CHINA
Brand Name: FOXSEW
Certification: CE
Model Number: FX3020

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Packaging Details: CARTONS
Delivery Time: 7 DAYS
Payment Terms: T,T ,LC
Contact Now
Detailed Product Description



Working Video 1: http://www.foxsew.com/company-video/programmable-electronic-pattern-sewing-machine-18.html

Working Video 2: http://www.foxsew.com/company-video/programmable-pattern-sewing-machine-19.html

The machine is suitable for single color embroidery, pock attaching, decorative stitching, webbing stitching, label / badge attaching, shoe applications and many more special applications.

Applications: Car seats, Aero Seats, Boots, Shoes, Shoes Uppers, Footwear, Handbags, Furniture, Car upholstery, Saddles, Luggage, Suitcase, Backpacks, Leather Jackets, Leisure wears, Sportswear, Down clothes, Warm clothes, Jeans, Sofa, and attaching label, widely used for many different industries.

Characteristics:

Max. stitching speed is 2,500rpm. achieved high productivity with fast sewing speed and feeding speed;

Large rotating hook;

Liquid crystal touch operation pane;

Applying the same Mitsubishi controlling system;

Automatic thread trimmer;

Versatility of application.

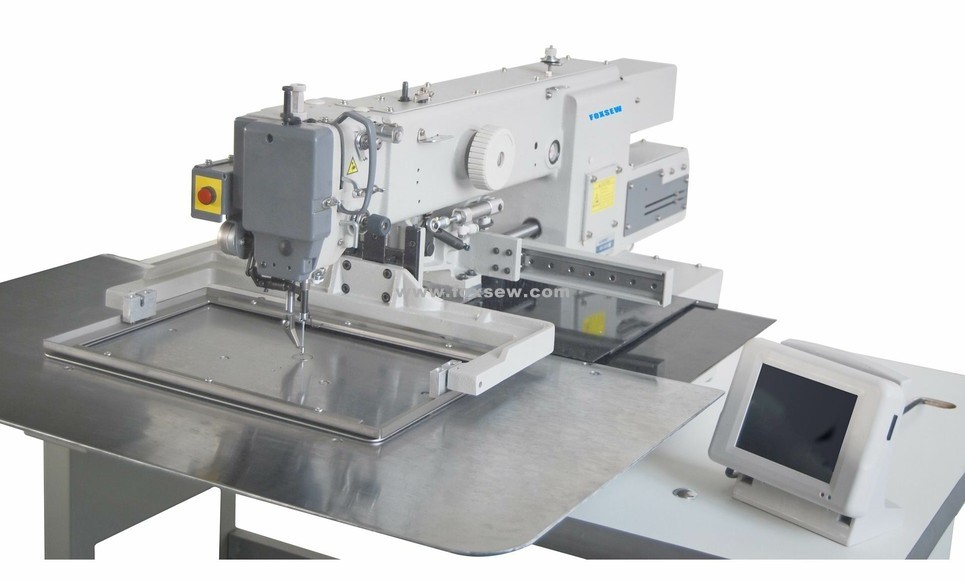

Programmable Electronic Pattern Machine

Programmable Electronic Pattern Machine

Specification:



Model

FX3020

Sewing Area

300 X 200 MM

Thread Size

Polyester Thread 0.3-1 mm

Rotating Hook

Large Rotating Hook

Thread Trimmer

Have

Stitch Length

100 mm

Pattern Storage

Below 691

Stepping Foot Lift

Max.18mm

Max. Stitches

8000/Pattern

Work Holder Height

Standard 25mm (Max. 30mm)

Programmer

Build in Pattern Programmer

Driving Motor

Direct Drive Servo Motor

Needle

DP17X25

Programmable Electronic Pattern Machine
