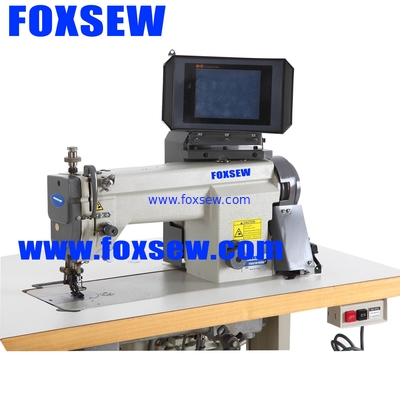

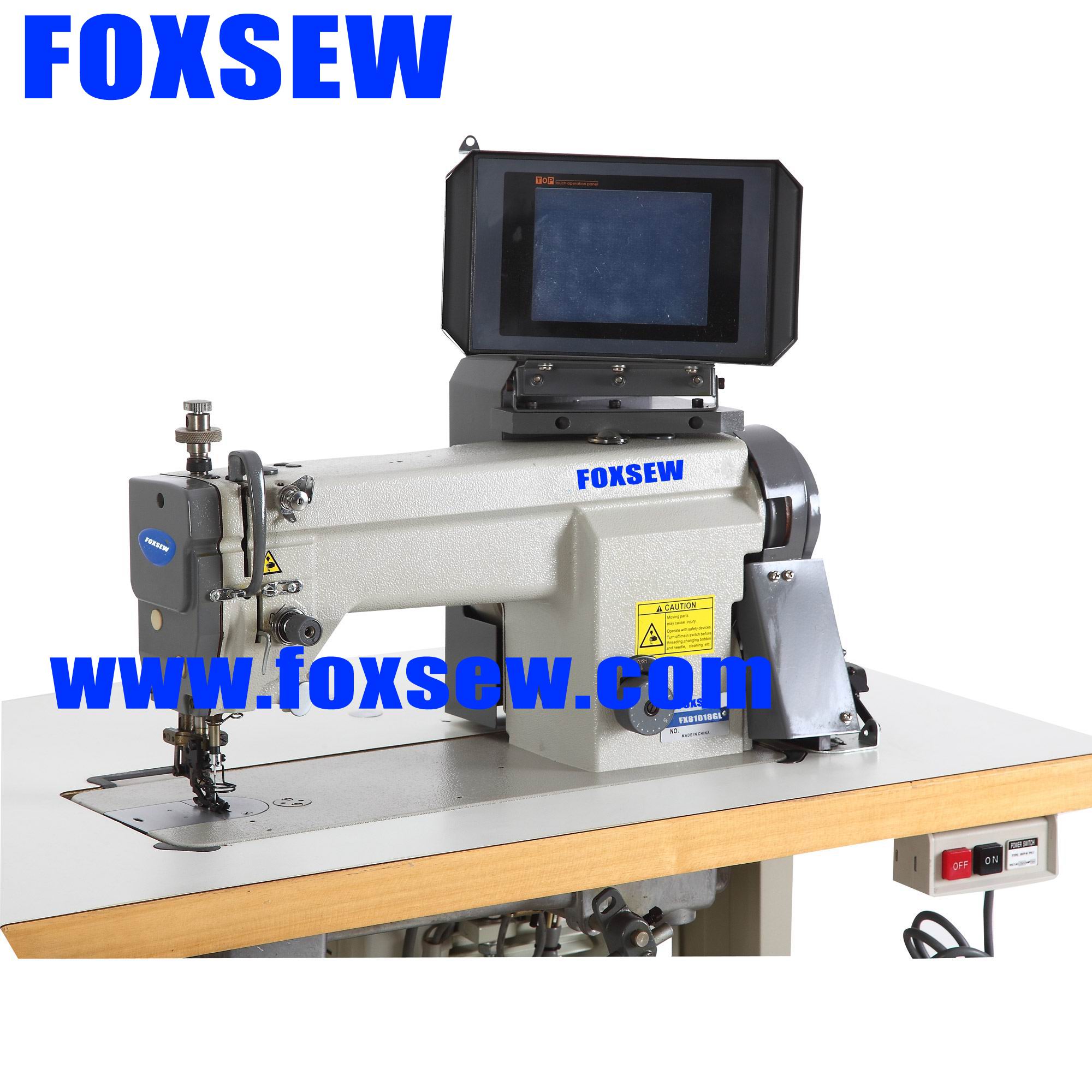

Integrated Sewing Unit for Programmed Sleeve Setting FX-81018GL
Share on facebookShare on twitterShare on emailShare on printShare on gmailShare on stumbleuponShare on favoritesShare on bloggerShare on tumblrMore Sharing Services0
Contact Now
Add to Basket
Features:
1. Up to 50 gathering styles to fulfill different fullness requirement for various sleeve style, size and material.
Fullness distribution total 100 style for right and left sleeve can be individually programmed and stored.
2. Each sleeve seam can be divided to 12 sections.
3. Stored programmers can be divided out easily simply by inputting the pertinent code number.
4. Extra fullness up to 10-20% can added as when required by the operator.
5. Perfect system due to automatic mirroring grading and repairing.
6. Easy and simple input system, by touch screen.
7. Automatic needle positioning, and thread trimmer.
8. Servo electronic motor.
Specifications:
Max sewing speed | 2.000 r. p. m | stitch system | 301 |
Max, stitch length | 4mm(bottom)/8mm(top) | Max. fullness per stitch | 8mm |
Max thickness of material | 4mm | needle system | 134R |
Power supply | single phase 220v/50-60HZ(Other voltage available upon request) | Pneumatic | 6KG/cm |
