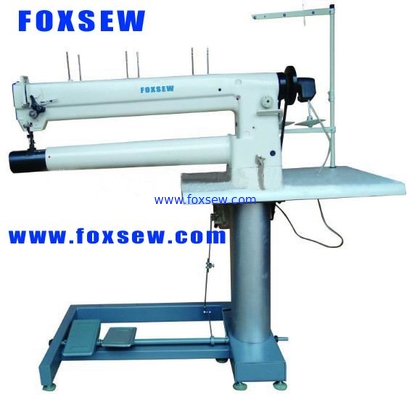

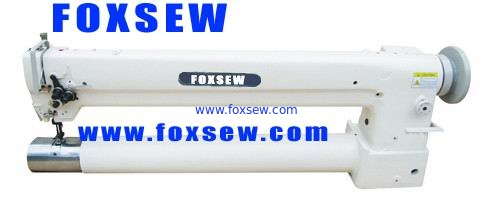

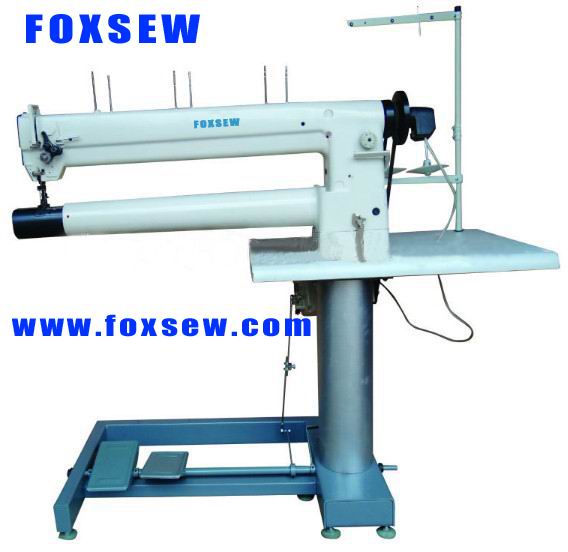

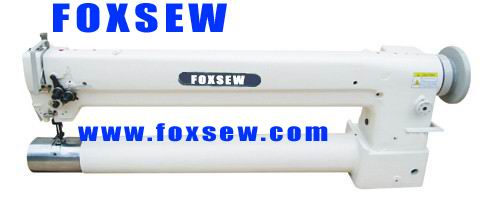

Long Arm Double Needle Cylinder Bed Unison Feed Extra Heavy Duty Machine
Share on facebookShare on twitterShare on emailShare on printShare on gmailShare on stumbleuponShare on favoritesShare on bloggerShare on tumblrMore Sharing Services0
Contact Now
Add to Basket
Features: FX-8341-760 model Long Arm Double Needle Cylinder Bed Unison Feed Extra Heavy Duty Machine ,with the compound feeding of needle feed dog and presser foot prevents the slippage of materials and forms net stitch. Adopt sliding thread take-up, imported vertical double rotating hook and forming two lines of lockstitch. the arm shaft and hook shaft are driven by synchrony tooth belt. Knob-type stitch regulator and lever type reverse feeding mechanism permit convenient operation. and install clutch safe device to prevent the damage. It is widely used in sewing tents, arch, umbrella, seat cushion, sofa etc… especially for filter bag cylindrical products.
Specifications:
Model | FX-8341-760 |
Max. Sewing Speed | 1800 r.p.m |
Stitch Length | 0-8 mm |
Needle Bar Stroke | 33.6 mm |
Working Space | 760 mm*100 mm |
Presser foot lift | By Hand: 9 mm By knee: 15 mm |
Needle Type | DP*17 |
Number of Needle | 2 |
Rotary Hook | Large Vertical Hook |
Needle Gauge | 12,9.5,7.9,6.4,4.8 mm |
Bed Size In diameter | 90 mm |
