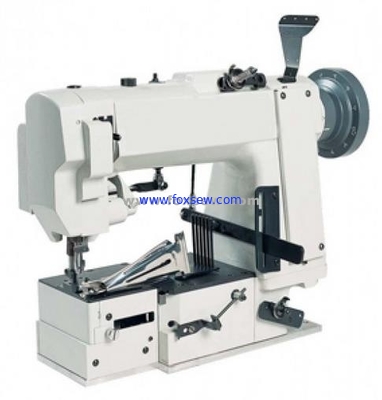

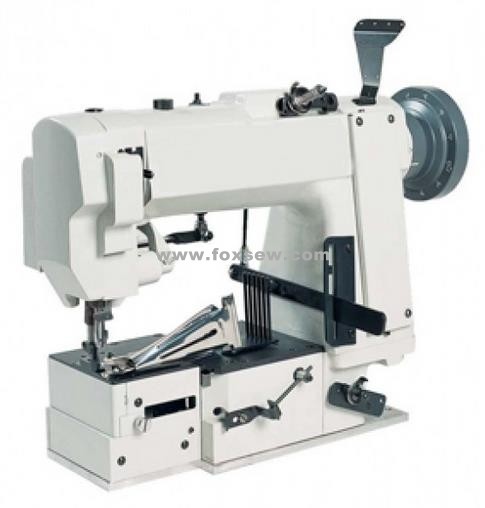

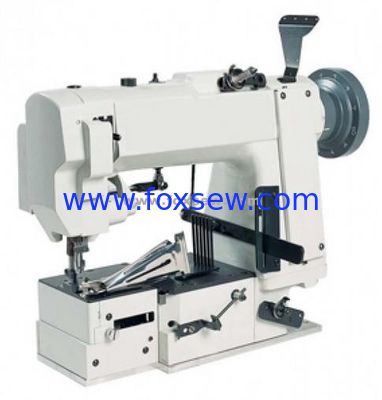

Tape Edge Sewing Machine Head FX-300U

: Large Image : Tape Edge Sewing Machine Head FX-300U

Product Details:

Place of Origin:	CHINA
Brand Name:	FOXSEW
Certification:	CE
Model Number:	FX-300U

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Packaging Details:	CARTONS
Delivery Time:	7 DAYS
Payment Terms:	T,T ,LC

Contact Now

Detailed Product Description

FX-300U is a double lock chain stitch sewing head suitable for all manufactured models of tape edge machine in the market.

The FX-300U Tape Edge sewing head is a proven design within the mattress industry. If offer fast reliable production with speeds of 3500 r.p.m.

Specification:

Double Lock Chain Stitch Type 401

Max Sewing Speed : 3500 r.p.m

Feed Type: Compound Feed & Alternating Pressers

Max Stitch Length : 7.6mm

Clearance Under Presser Foot : 11.00mm

Needle Bar Stroke : 36.5mm

Dimensions from Needle to Side of Machine Bed : 6.9mm

Supplied with a Single or Double Fold Tape Binder

Tape Edge Sewing Machine Head FX-300U
