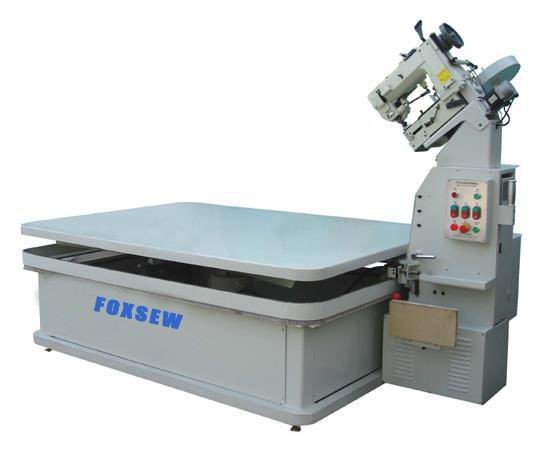

Features: FX-WB-6 Mattress Tape Edge Machine is mainly used for sewing mattress. A precision guide track is equipped on its support frame, which makes the walking carriage move accurately and the machine run smoothly. At the same time, its walking carriage running, sewing head tilting angle and working table height are controlled by electricity. This feature makes operation more convenient. It is a perfect equipment for manufacturing high-class mattress.
1. It adopts advanced 300U chain stitch high-speed sewing head;
2. Electric lift working table, manual adjustable sewing head;
3. Sewing, sliding guide move adopt variable frequency stepless speed regulation, speed auto slowdown at corner;
4. The stitches are straight, even and beautiful;
5. Stainless steel table;
6. Stands set the level adjustment device;
7. Built-rotating electrical power supply, no special requirement for installing space;
8. Stable performance, low vibration and noise.
Specifications:
|
Model No.: |
FX-WB-6 |
|
Sewing Head Type |
Chain stitch |
|
Sewing Head Motor rotary speed |
Max. 3065r/min |
|
Carriage Speed |
13.6 m/min |
|
Tilting angle of sewing head |
35-55 degree |
|
Sewing Mattress Thickness |
50-500 mm |
|
Table Lifting Range |
0-400 mm |
|
Carriage clutching mode |
Electromagnet clutching |
|
Working Table Size |
2000x1600mm, 2000x1800 mm |
|
Productivity |
20 pcs/hour |
|
Motor Power |
1.65 KW |
