Product Details:
Payment & Shipping Terms:
|
| Stitch Formation: | Lock Stitch | Type: | Unison Feed Extra Heavy Duty Lockstitch Sewing Machine |
|---|

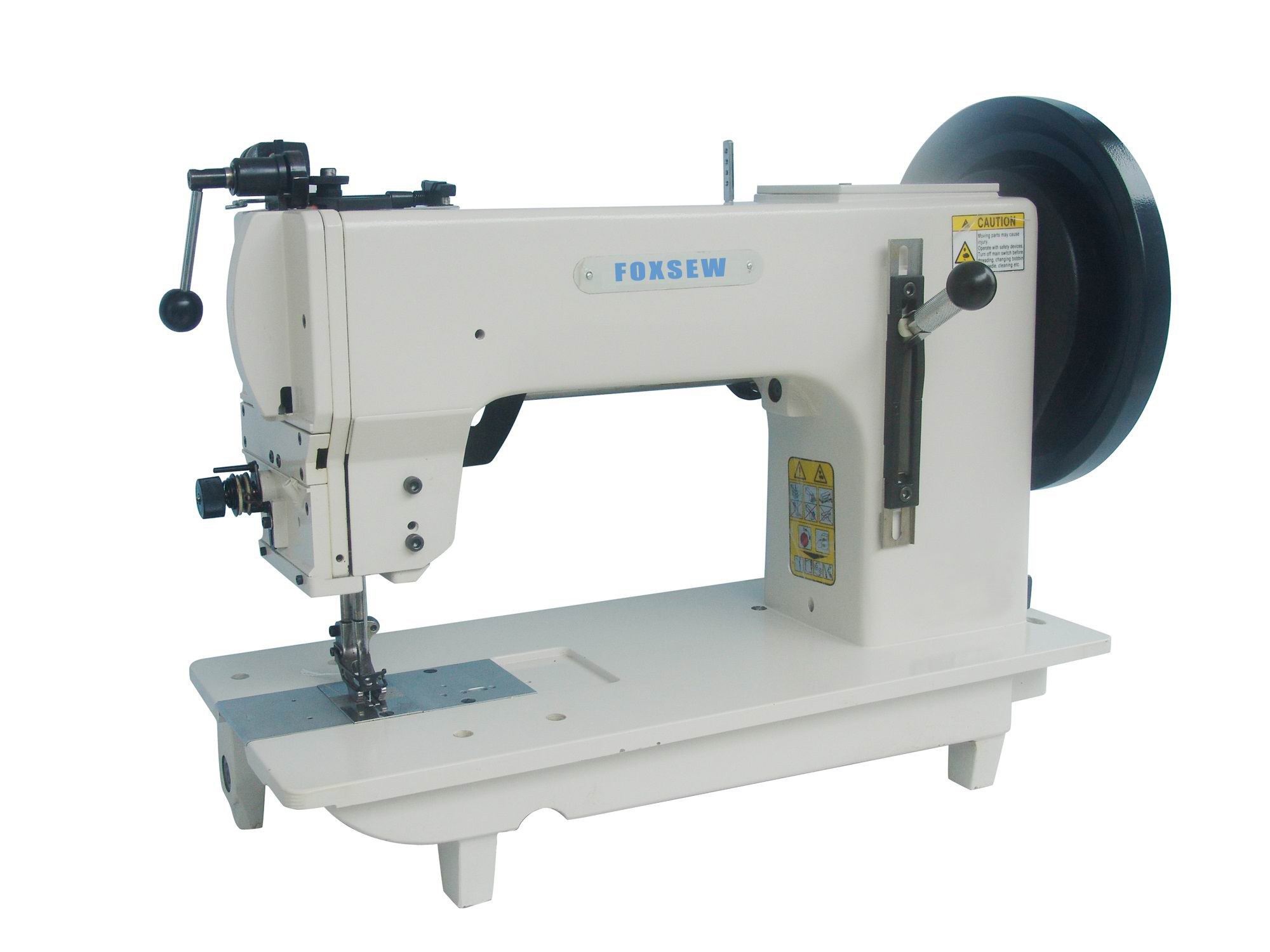

Features: Even sewing with long stitch lengths and thick threads, the FX-204 is characterized by an excellent stitch pattern and uniformly tight stitch formation, for the extremely sturdy design of its mechanical parts and the enhanced feeding action. This machine with heavy cylindrical shuttle hook is designed for processing extreme thread and material, such as the manufacture of leather goods, special textile and decoration industry.
Specifications:
|
Model |
FX-204 |
|
Max. Sewing Speed |
800 r.p.m |
|
Stitch length |
0-12 mm |
|
Needle Bar Stroke |
56 mm |
|
Thread Take-up Lever Stoke |
96 mm |
|
Operating Space |
310X185 mm |
|
Presser Foot Lift |
By Hand: 14mm By Knee: 22mm |
|
Shuttle Hook |
Cylinder Shuttle Hook |
|
Lubrication |
Manual Lubricated |
|
Needle Type |
DYX3 21#28# |
|
Motor |
550W Clutch Motor 1400 r.p.m |
