Twin Needle Unison Feed Walking Foot Heavy Duty Leather Sewing Machine with Split Needle Bar

Twin Needle Unison Feed Walking Foot Heavy Duty Leather Sewing Machine with Split Needle Bar

China Twin Needle Unison Feed Walking Foot Heavy Duty Leather Sewing Machine with Split Needle Bar supplier

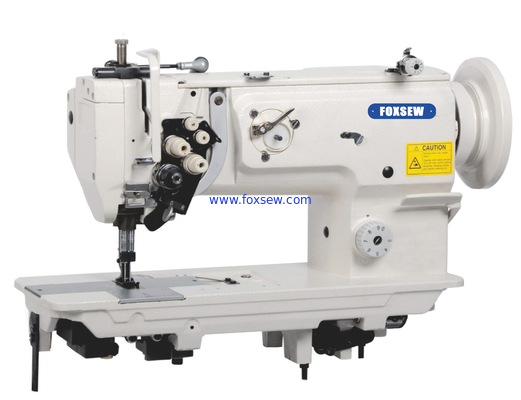

Large Image :  Twin Needle Unison Feed Walking Foot Heavy Duty Leather Sewing Machine with Split Needle Bar

Product Details:

Place of Origin: China
Brand Name: FOXSEW
Model Number: FX-1565N

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: 0 USD
Packaging Details: CARTONS
Delivery Time: 7days
Payment Terms: T/T
Supply Ability: 100000pcs
Contact Now
Detailed Product Description

  • Applications for Sewing Leather Sofas, Car Interiors, Automotive Upholstery, Bags, Suitcase, Furniture Upholstery, Leather Armchairs, Leather Recliners, Sports Apparatus, Office Furniture, Soft Cushion, Fabric Sofas, Shoes, Sports Products, Car Seats, Leather Articles, Belts, Canvas, Handbags, Outdoor Wear, Overalls, Uniforms, Jeans, etc...

  • 2-Needle, Split Needle Bar, Corner Stitching or Angle Seaming, Unison Feed, Walking Foot, Large Vertical Axis Hook and Large Bobbin

Product Details: Twin Needle Unison Feed Walking Foot Heavy Duty Lockstitch Sewing Machine with Split Needle Bar

FOXSEW 2-Needle Unison Feed Lockstitch Sewing Machine with Organized Split Needle Bar and Large Vertical Axis Hook.

FX-1565N-7 Twin Needle Triple Feed Split Needle Bar Lock Stitch Sewing Machine with Automatic Thread Trimmer.

Applications: Leather Sofas, Fabric Sofas, Automotive Upholstery, Car Interiors, Shoes, Furniture Upholstery, Car Seats, Leather Bags, Handbags, Safety Belts, Sofas, Jeans, Jumping Castles, Car Covers, Container Bags, Airbags, Leather Car Mats, Tents, Awnings, Umbrellas Handbags, Luggage, Seat Belt, Airbags, Marina and Aviation Upholstery, Travel ware Accessories, Lorry Curtain Sidings, Camping Goods, General Canvas Work etc...

The organized split needle bar mechanism makes it possible to stop or reset the left or right needle by operating a one-touch utility lever, so it’s suitable for making corner stitch and angle seams sewing process. The machine produces neatly finished stitches at corner parts of the materials; The standard 2-needle type machine that delivers the basic functions and performance best suited to the sewing of heavy materials; The stitch length can be easily selected by the stitch dial; The machine is provided with many improved features that offer enhanced operate such as an easy-to-observe area around the needle, placement of the bobbin winder on the front face of the machine arm, and a large hand wheel (160); The machine is full-open-type top design makes it possible to fully open the top of the machine arm. Thanks to this design, adjusting works can be done without tilting the machine head; The machine is equipped as standard with a safety clutch for preventing hook breakage.

Specifications:

Model NO.: FX-1565N FX-1565N-7
Automatic Thread Trimmer: No Yes
Max. Sewing Speed: 2500r.p.m
Needle Gauge: Standard: 6.4mm, 3.2mm, 4mm, 4.8mm, 9.5mm, 12.7mm, 16mm, 19mm, 25.4mm and any special gauge is available
Operating Space: 255mmx105mm
Stitch Length: 0-9mm
Presser Foot Lift: By Hand: 9mm, By Knee: 16mm
Needle Bar Stroke: 36mm
Thread Take-up lever stroke: 74.5mm
Needle Type: DPx17 19#-23#
Hook: Vertical-axis Large Hook
Lubrication: Automatic Lubricated
Safety Clutch Device: Yes

FOXSEW Twin Needle Unison Feed Walking Foot Heavy Duty Leather Sewing Machine with Split Needle Bar

Twin Needle Unison Feed Walking Foot Heavy Duty Leather Sewing Machine with Split Needle Bar
