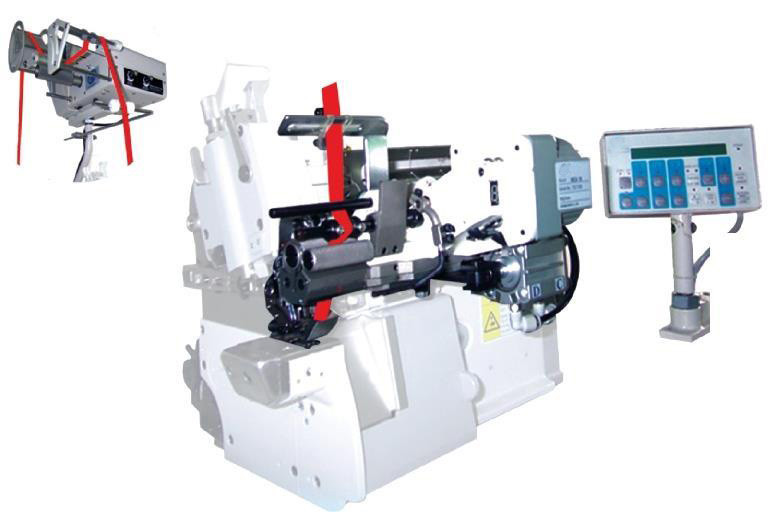

Computerized Metering Device for Overlcok Machine MCA18K

Name: Computerized Metering Device for Overlcok Machine MCA18K
Brand: FOXSEW
SKU: MCA18K
Rating: 4.5 (146 reviews)

Place of Origin	CHINA
Brand Name	FOXSEW
Certification	CE
Model Number	MCA18K
Minimum Order Quantity	1 PCS
Packaging Details	CARTONS
Delivery Time	7 DAYS
Payment Terms	T T LC

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Leave a Message

Product Description

Auto-cutting and re-insert. It can reach different sewing purpose by powerful multi-function with 27 program memory.

With cutting device

It is made for any elastic attaching sewing, special for connecting the circle sewing. During the sewing operation, it can auto cut the tape fast in front of the presser foot for covering sewing to make the flat and beautiful sewing. In the beginning and after finishing sewing, the presser foot will be lifted automatically. And the elastic will be re-inserted into the presser foot for the next sewing operation.

Parts description:

Auto cut & re-insert

For connecting the circle sewing, during the operation, it can automatically cut the tape fast in front of the presser foot to make it flat and beautiful. In the beginning and after finishing sewing, the presser foot will be lifted automatically. And the elastic will be re-inserted to presser foot to stand by.

Synchronizer

The synchronizer is installed in the belt pulley. It’s used for stitch counting and section changing.

Manual section changing display

LED digital display shows the current section and manual section changing controller allows operator change different section by finger.

Cutting switch device

Cutting switch is fixed under the operation table. Operator could click cutting switch by knee when the elastic needs to be cut.

Presser foot-lifting switch

In the beginning and after finishing sewing, presser foot would be lift by pressing pedal backward.

Movable bracket

This bracket could be adjusted to best situation and makes metering device easy maintaining.

Computerized metering device MCA18K

MCA18K - 38

MCA18K - 64

MCA18: Micro-computerized auxiliary device, with 18 different sections and 27 memory program

K: For Overlock sewing machine only

38/64: Max feeding width

JUKI, PEGASUS, BROTHER, YAMATO, KINGTEX, SIRUBA

Specification:

Product Name	Computerized Metering Device
Model No.	MCA18K
Memory Program	18 Sections, 27 Memory Program
Operation System	Programmable Logic Controller System
Feed Length Adjusting	1-99
Stitch Counting	Blank or 1-999
Base Mounted Way	Mounted on Overlock Sewing Machine
Max. Speed	5500 r.p.m
Max. Width	38 mm
Power Supply	AC 220V 50HZ
Standard Parts	Synchronizer, Manual Section Changing Display, Cutting Switch Device, Presser Foot-lifting switch
Optional Parts	Thread-Releasing Device
Sewing Machine Brand	JUKI, BROTHER, PEGASUS, YAMATO, SIRUBA, KINGTEX
