Tension Type Digital Metering Device FXE8

Place of Origin	CHINA
Brand Name	FOXSEW
Certification	CE
Model Number	FXE8
Minimum Order Quantity	1 PCS
Packaging Details	CARTONS
Delivery Time	7 DAYS
Payment Terms	T T LC

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Leave a Message

Product Description

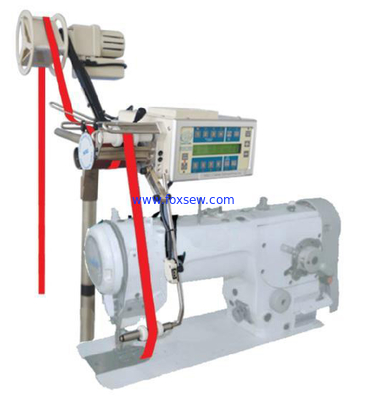

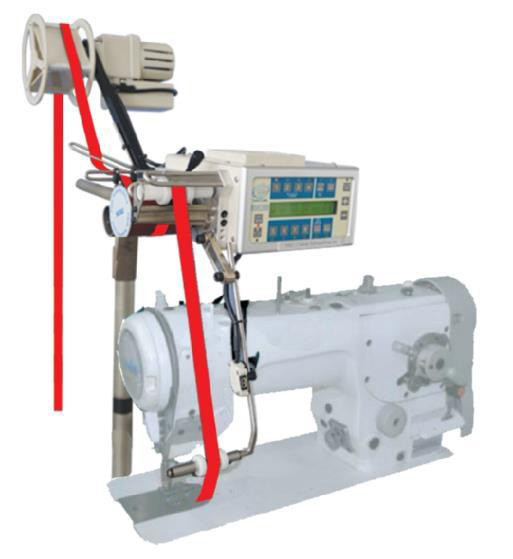

Tension type computerized metering device for upper feed only. The main unit, control box and panel are all together as one.

Industrial CPU chipset and all new operating system make metering device work more stably and precisely.

Smart touch panel displays sensitivity according to changing tension.

It can feed eight different sensitivities and adjust elastic automatically by setting tension and stitch. With compact figuration, fashion appearance and easy-operation, it’s the best sewing supplement for underwear manufacturer.

Parts description

Free tape switch

This switch prevents elastic tape pulled backwards when the operation stops.

LED section display

It indicates the current section by LED display

LED display and manual section changing controller

This tiny display shows the current section and manual section changing controller allows operator change different section by finger.

Synchronizer

The part is fixed in the belt pulley. It’s used for stitch counting and section changing.

Suspended switch for free tape function

Specification:

Product Name	Tension Type Digital Metering Device
Model NO.:	FXE8
Memory Program	8 Sections, 26 Memory Program
Tension Adjusting	1-999
Sensitivity Adjusting	1-99
Stitch Counting	Blank or 1-999
Base Mounted Way	Operation Table
Max. Speed	5500 r.p.m
Max. Width	65 mm
Power Supply	AC 220V 50HZ
Standard Parts	Free Tape Switch, LED Section Display
Optional Parts	Synchronizer, LED Manual Section Controller, Suspended Switch
