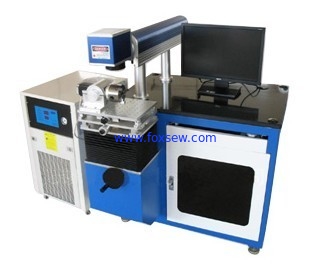

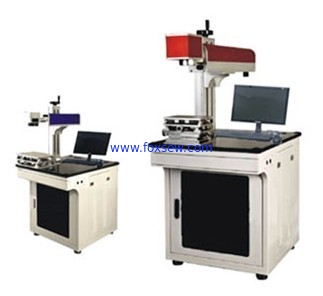

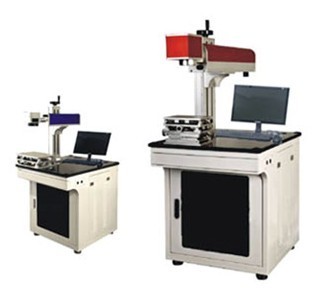

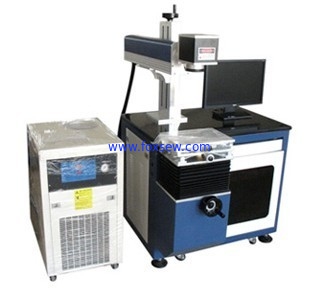

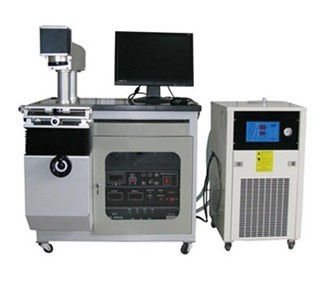

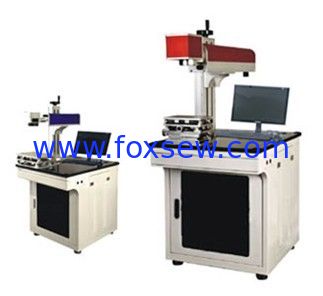

Laser Marking Machine FX50

Place of Origin	CHINA
Brand Name	FOXSEW
Certification	CE
Model Number	FX-50
Minimum Order Quantity	1 PCS
Packaging Details	CARTONS
Delivery Time	7 DAYS
Payment Terms	T T, LC

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Leave a Message

Product Description

FX-50 Series Diode side pump series laser marking machine adopt semi-conductor module, high-speed optical scanner, imported Q switch and YAG rod, High-speed scanning and marking. High precision locating and re-marking. Independent self-control cool-water cyclic system ensure stable performance. Long-time and continuous running meet the requirement of processing large quantity work pieces. Marking of non-contact and operation of humanity.

Features:

1. The laser marking is excellent in resistance to wear and counterfeiting.

2. Software support Windows2000/XP operating system, Chinese and English interface, multiple languages supported.

3. Self-designed patterns to be processed, powerful node editing , vectorgraph creating, curves changed directly in the process of creation.

4. Support barcode font (see 1D and Datamatrix, PDF417 2D barcodes).

5. Compatible with common graphic formats (bmp, jpg,gif,tga,png,tif,etc.)and vectorgraphs (dxf,dst,plt,etc.).

Application:

It used in mark fields such as watches and clocks, mold, bitmap marking, packaging, health care, tobacco, Sanitary Ware, food, electronics, gifts and other industries It is the best choice of high-speed precision marking

Suitable for marking material such as steel, copper, aluminum, gold, silver and other metal materials. Fabric, leather, wood, bamboo, plastic, paper, glass and other non-metal materials.

Laser Marking Machine FX50 0

Technical Parameters:

Model	FX-50 Series
Laser Power	50~100W
Laser Wavelength	< 60KHz
Laser Repetition Rate	1064nm
Marking Area	50×50/100×100/160×160/220×220(Optional)
Marking Wire-speed	50µm
Min. line Width	0.2mm
Mark depth	300/min character/min height 1mm
Min. Characters	≤ 0.3mm
Repeat Accuracy	±0.01mm
Total Power	220V(±10%)/50Hz/15A
Power Supply	< 2.5KW
Work environment	Temperature:5~35 ℃, humidity 5% to 75%
Cooling system	high-precision constant temperature/closed loop water-cooling
