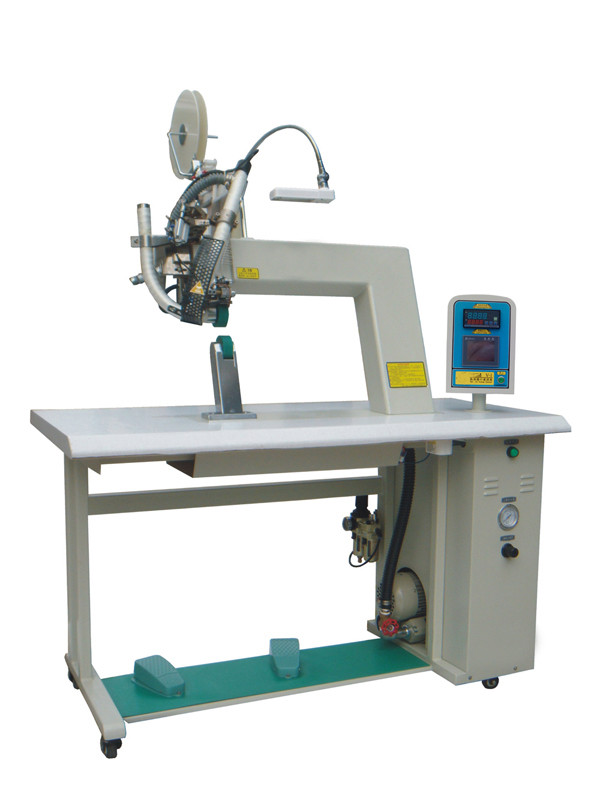

Hot Air Seam Sealing Machine for Shoes FX-V2

Name: Hot Air Seam Sealing Machine for Shoes FX-V2
Brand: FOXSEW SEWING MACHINE CO.,LTD.
SKU: FX-V2
Availability: InStock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Leave a Message

Product Description

Features:

1.Controlled by programmable PLC with HMI Soft-touch display, process can be modified according to users’ requirements

2. Auto controllable temperature, highly stability, temperature vary between ± 2º C, the upper limit temperature with alarming device.

3. Synchronous moving with up and down pressing wheel chain.

4. To design controlling by feet at ease, suitable for long working according to physical Dynamics.

5. Be possible of working 24 hours continuously and produce highly efficiently.

6. Unique heated tube, unique wind machine supplying with wind, absolutely no water and oil.

7. Auto slightly fading function.

8. Auto clipped tape, sending tape and auto completed, to decrease the wastage of material.

9. Unique device with the down column suitable of any sizes of products close sealing pressure belt.

Hot Air Seam Sealing Machine for Shoes FX-V2 0

Specifications:

Model	FX-V2
Power	110V/220V 50/60HZ
Rating Power	2800W
Heat Control	Room Temperature~700°C adjustable without bands
Speed	2-24m/min infinity variable
Air Supply	0.35~0.5 Mpa
Width of Pinch Roller	Standard: 25mm mill finish, steel grain, straight grain to be chosen according to demand
Width of Seam Sealing Tape	14mm-22mm standard, others are available according to requirements
Packing Size	1300x600x1530 mm
Weight	140 kgs
Prevention Against Jumping over sewing work	There are adjustable devices to prevent the gun from jumping over the seamed sections when the gun is moving inward with the idle wheel starting, or when the gun moving outward with the idle wheel stopping

Hot Air Seam Sealing Machine for Shoes FX-V2 1
