Auto-Flipping Mattress Tape Edge Machine FX-WB-4A

Place of Origin	CHINA
Brand Name	FOXSEW
Certification	CE
Model Number	FX-WB-4A
Minimum Order Quantity	1 PCS
Packaging Details	CARTONS
Delivery Time	7 DAYS
Payment Terms	TT,LC

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Leave a Message

Product Description

Features: FX-WB-4A Auto-Flipping Mattress Tape Edge Machine is mainly used for taping edge of mattress panel and soft cushion. Rather than moving around, the head is fixed but can move up and down to adapt to different height of mattress. The obliquity of the head is adjustable. When working, the conveying belt drives the mattress to proceed, When one side is finished, the machine can swerve 90°automatically to start taping another side. The taping of the corner is finished while swerving. When the top four sides are completed, the machine can overturn the mattress for taping the other four sides. This machine needs only one operator and there is no need for him to move around or overturn the mattress manually. Thus higher efficiency and less labor is realized.

Technical characteristics:

1, Featuring the heavy-duty 300U Chain stitch sewing head and variable speed control, the Tape Master is capable of taping all sizes of mattresses from crib to king.

2, Specifically designed for today’s heavy premium and pillow top mattresses, the high-speed head sews up to 3000 RPM.

3, The operator remains in a stationary sewing position while wide controlled conveyor belts move the mattress. The patented compression and turning devices built into the machine bring the mattress to the sewing head.

4, The process is further automated by the unique design that turns and flips the mattress in preparation for taping the other side.

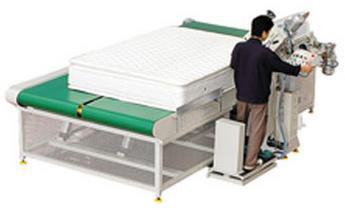

Auto-Flipping Mattress Tape Edge Machine FX-WB-4A 0

Specifications:

Model No.:	FX-WB-4A
Productivity	20 pcs/hour
Thickness of Mattress	50-400 mm
Head Lifting Range	0-300 mm
Sewing Head	300U Chain stitch
Working Angle of the sewing head	25-65 degree
Table Dimension	3760x1980x880 mm
Total Power	3KW
Power Supply	220V/380V, 50HZ, 3-Phase
Air Supply	0.6-0.8 Mpa
Machine Weight	1350 KGS

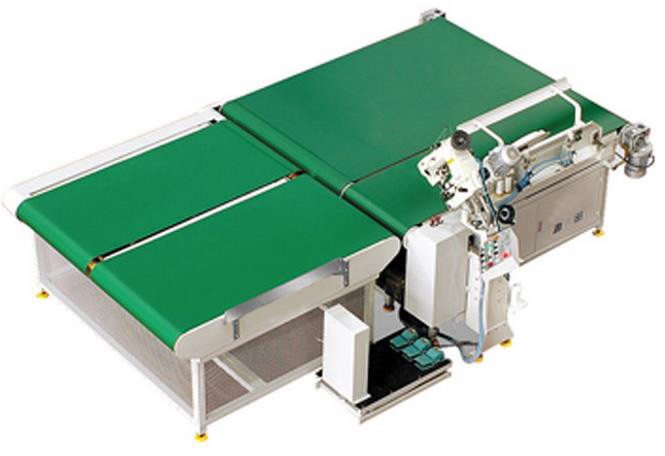

Auto-Flipping Mattress Tape Edge Machine FX-WB-4A 1
