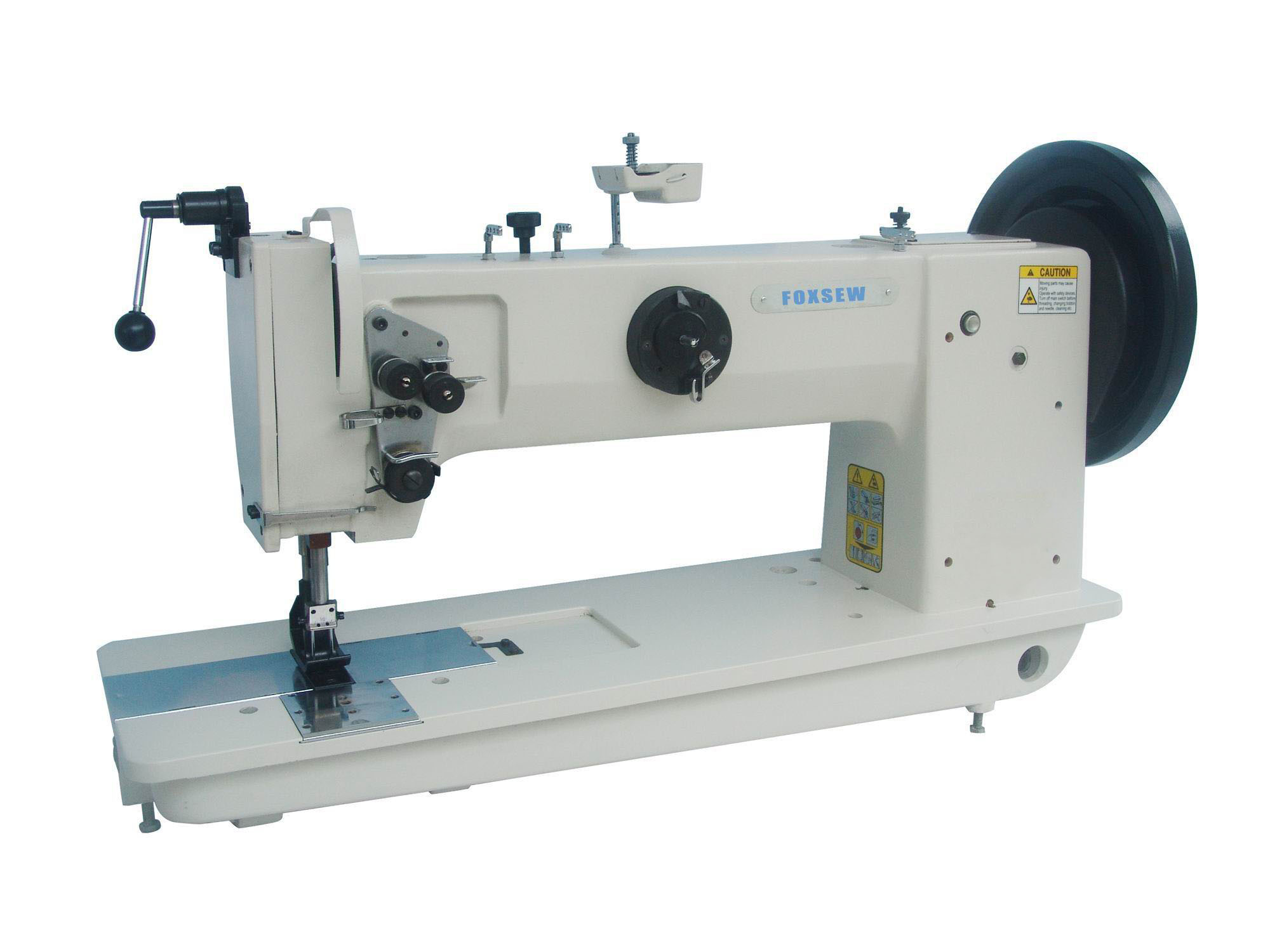

Long Arm Extra Heavy Duty Unison Feed Lockstitch Sewing Machine FX158

Place of Origin	CHINA
Brand Name	FOXSEW
Certification	CE
Model Number	FX158
Minimum Order Quantity	1PCS
Packaging Details	CARTONS
Delivery Time	7 DAYS
Payment Terms	T,T LC

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Type	Long Arm Extra Heavy Duty Unison Feed Lockstitch Sewing Machine

Leave a Message

Product Description

Features:

This model is the king size of extra heavy materials compound feed lockstitch sewing machine of FOXSEW brand, it adopts vertical rotating hook, sliding lever thread take-up. We divide it into single-needle and double-needles. It adopts Synchronic feeding of needle bar and feed dog. The comprehensive performance of whole machine is so strong, especially includes these aspects: smooth drive train, low noise, large operation space, we also installed the clutch device to pretend the rotating hook from overloading, insure the safety of products and rotating hook. Convenient operation of pedal type reverse-feed, push-button type needling-distance regulating mechanism, adopts concealed bobbin winder, equipped with automatic lubrication rotary horizontal hook, it can reduce the frequency of changing the baseline when sewing thick seaming work piece. It is suitable for leather, artificial leather, Canvas, nylon chemical fibber, synthetic material, rubber and so on which is extra heavy materials, used for sewing sails and tents, cushion, sofa, beach umbrella, truck’s hook etc.

Long Arm Extra Heavy Duty Unison Feed Lockstitch Sewing Machine FX158 0

Specifications:

Model	FX-158	FX-158-2
Number of Needle	1	2
Max. Sewing Speed	1200 r.p.m
Stitch Length	0-10 mm
Needle Bar Stroke	46.8 mm
Presser Foot Lift	By hand: 12 mm By Knee: 21.5 mm
Needle type	DD*1 21#28#
Rotating Hook	Horizontal Fall Rotation Extra Large Rotary Hook
Presser Foot Alternation	6-19 mm
Lubrication	Manual Lubrication
Scale	Sliding Lever Type
Needle Gauge	Standard 9.5mm
Operating Needle	600*160 mm
Motor	550W Clutch Motor 1400 r.p.m

Long Arm Extra Heavy Duty Unison Feed Lockstitch Sewing Machine FX158 1
