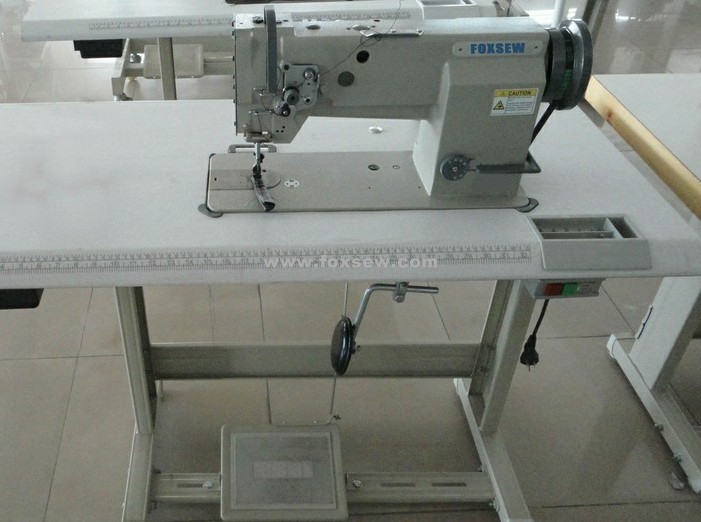

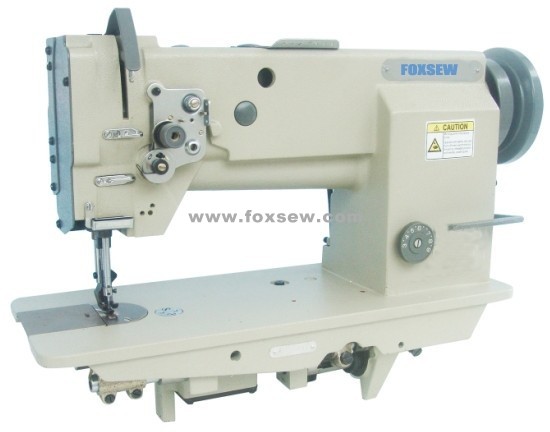

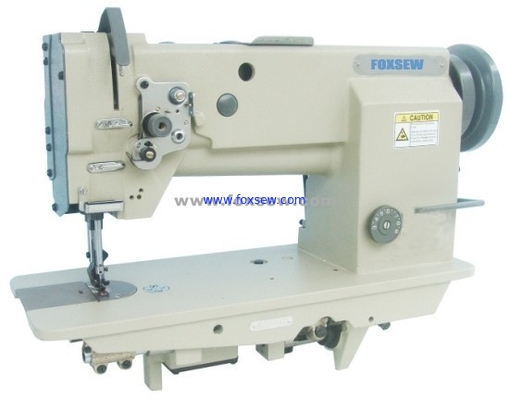

Heavy Duty Compound Feed Lockstitch Sewing Machine FX4410

  • Heavy Duty Compound Feed Lockstitch Sewing Machine FX4410
  • Heavy Duty Compound Feed Lockstitch Sewing Machine FX4410
Place of Origin CHINA
Brand Name FOXSEW
Certification CE
Model Number FX4410
Minimum Order Quantity 1PCS
Price Negotiation
Packaging Details Cartons,wooden case
Delivery Time 7 days
Payment Terms T.T,LC

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max. Sewing Speed 2000 R.p.m / 1400 R.p.m Stitch Length 0-9 Mm
Stitch Formation Lock Stitch Mechanical Configuration Flat-Bed
Type Heavy Duty Compound Feed Lockstitch Sewing Machine
Leave a Message
Product Description

Features: This series is the latest of FOXSEW brand heavy duty compound feed lockstitch sewing machine, which is designed with large Vertical rotating hooks for thread loop catching and sliding bars for thread up-taking. With under-trimmer, the application of needle bearings for arm shaft and hook shaft, dog belt driving, plunger pump lubrication and compound feed by needle bar, presser foot and feed dog provides this series with such splendid features as smooth running, quiet working and a long service life. It is also equipped with a safety clutch to prevent the hooks from damage by over-duty operation. So it is especially available in stitching car seat cushions, sofa, handbag, box package, safety belts, safety air bags, tents, parachutes and so on.

Heavy Duty Compound Feed Lockstitch Sewing Machine FX4410 0

Specifications:



Model

FX-4410 / FX-4410A

Max. Sewing Speed

2000 r.p.m / 1400 r.p.m

Stitch Length

0-9 mm

Needle Bar Stroke

36 mm / 38 mm

Thread Take-up Lever stroke

74.5 mm

Presser foot lift

By Hand: 8mm   By knee: 20 mm

Needle Type

DP*17 18#-22#

Presser foot alternation

2-6 mm

Rotary Hook

Automatic Lubricated Large Rotary Hook

Lubrication

Automatic Lubricated

Safety clutch device

Yes

Reverse feeding device by hand

Yes

Needle Gauge

Standard: 6.4MM Special: 3.2.4.76.9.5.12.7MM

Motor

400W Clutch motor 1400R.P.M

Heavy Duty Compound Feed Lockstitch Sewing Machine FX4410 1
