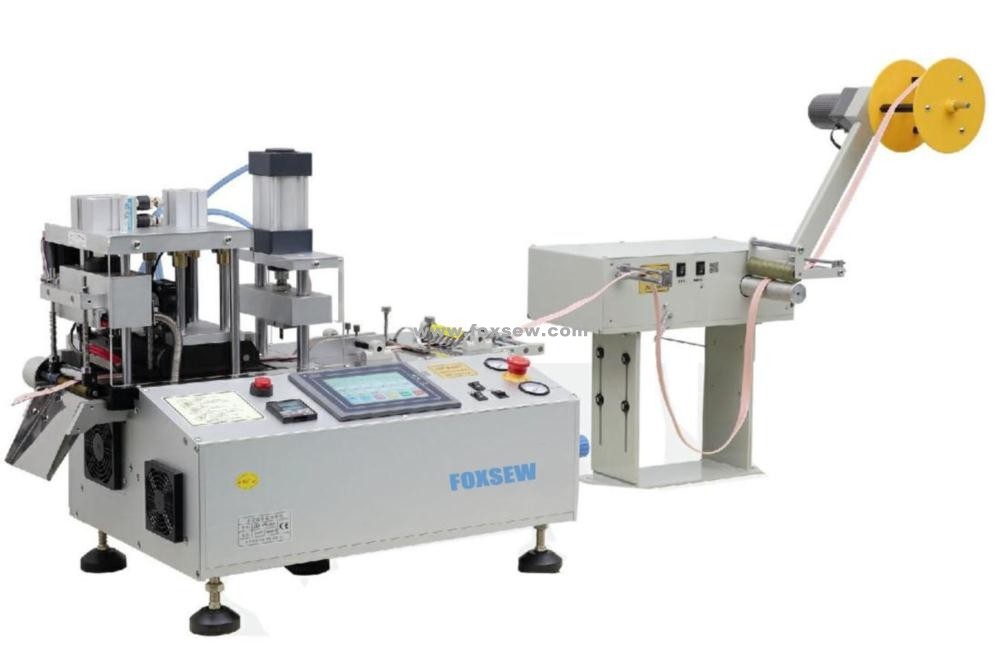

Automatic Hot Knife Angle Webbing Cutter with Hole Punching FX-150HX

Place of Origin	CHINA
Brand Name	FOXSEW
Certification	CE
Model Number	FX-150LR
Minimum Order Quantity	1
Packaging Details	wooden case
Delivery Time	3days
Payment Terms	T/T
Supply Ability	10000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Leave a Message

Product Description

FOXSEW Automatic Angle Tape Cutting Machine Multi-function with Punching Hole

Applications: All kinds of Woven Belt, Webbing, Ribbon Tapes, Zippers, Leather Belts, Elastic Bands, Ropes, Slings, VELCRO, Shoelace, Plastic Soft Tube, Computer Cable, Labels, etc...

Working Video 1: www.foxsew.com/company-video/automatic-tape-angle-cutting-machine-with-hole-punching-413.html

Working Video 2: www.foxsew.com/company-video/automatic-angle-tape-cutter-with-punching-hole-518.html

Working Video 3: www.foxsew.com/company-video/automatic-rotating-knife-tape-cutting-machine-with-punching-hole-428.html

Working Video 4: www.foxsew.com/company-video/automatic-angle-ribbon-cutter-with-punching-hole-529.html

High Speed: It can cut 80-100 pcs per minute (e.p. 100mm long).
Accuracy: Cut-length is accurate owing to a stepping motor. A sensor makes cut-length accurate by automatic sensing at set-position.
Multi-Angle: By use of multi-angle cut function of straight knife, it can cut many different shapes and patterns, such as diamond, parallelogram, rhombic, square, pagoda shapes, etc... You can set up it by changing the length, quantity, angle, etc...
Punching Device: According to the needs of users, it can punching different size of the diameter of holes.
Cutting Type: The blade is made of high quality steel. Hot cutter can cutting ribbon, thin woven belt and the hot knife melts the end of the tape, cutting is sealed neatly smoothly without any fraying and burrs.
Automatic Operation: It works automatically only by setting length, quantity and angle.
Computerized: Automatic work and stop, The special fault by self-diagnosis. Direct show the fault problem on the screen, it will easy for you to find clear way to repair.
Automatic Stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set quantity and set speed are not erased even if power off and on.

Cutting Samples:

Automatic Hot Knife Angle Webbing Cutter with Hole Punching FX-150HX 0

Specifications:

Model No.:	FX-150HX
Cutting Length (mm)	20-99999
Max.Cutting Width Straigh/Bevel (mm)	100/35
Max.Blade Temp (°C)	450
Voltage	110/220V
Punching Hole Diameter	2-5 mm
Recommended Presser (Mpa)	20-50
Weight	78 Kgs
Packing Size	80x57x62cm
Power	0.5KW
100mm Cutting Speed (p/min)	120pcs
