Multi-Head Computerized Quilting Machine FX6-2
| Place of Origin | CHINA |
|---|---|
| Brand Name | FOXSEW |
| Model Number | FX6-2 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Multi-Head Computerized Quilting Machine FX6-2,Multi-Head Computerized Quilting Machine FX6-2,Consecutive Labeller FX2253 |
||
|---|---|---|---|
Product Description
Multi-Head Computerized Quilting Machine FX6-2
Share on facebookShare on twitterShare on emailShare on printShare on redditShare on stumbleuponShare on favoritesShare on gmailShare on bloggerMore Sharing Services0
- Product Name:Multi-Head Computerized Quilting Machine
- Model NO.:FX6-2 Series
- Origin:Zhejiang,China
- Brand Name:FOXSEW
Contact Now
Add to Basket
- Product Details: Multi-Head Computerized Quilting Machine
Uses:
Quilt, coverlet, bedcover, sponge, leather and so on.
Details:
- The head moves along X axis, and the frame moves along Y axis.
- Work efficiency is double the single head quilting machine.
- Each head can work independently.
- Using special technology, the quilt can't be broken.
- Using four servo motors.
- Using good quality hardware and software, the right-angle, sharp-angle and circle can be well quilted.
- 15" color monitor, Chinese or English character, on which pattern, stitch distance, current stitch, rotation speed can be displayed.
- Using industrial mainboard, Floppy disk and USB disk can be employed to input patterns.
- Use the world’s most popular Tajima(dst) format pattern design files.
- Upper thread breakage detection system: when the thread breaks, machine would stop.
- Quilting pattern storage: about 200 patterns kept in the computer, also can be read from floppy.
- Zoom the pattern by 1 cm step.
- Retreat requiting.
- Automotive backtack at every start and stop during the pattern cycle.
If shut off electricity, program would be kept in the computer. - Safety device: when an exception occurs, machine will stop automatically and the reason will be displayed on the screen.
Parameters:
Machine Area | Quilting Area | Rotary Hook | Needle | Stitch Length | Max Rotate Speed | Power | Power Consumption |
4.2m*5.5m | 2.8m*3.0m | Big Rotary Hook | MR3.0-5.0 | 2mm-8mm | 2200RPM | Single-phase 220v 50hz | <;2KW |

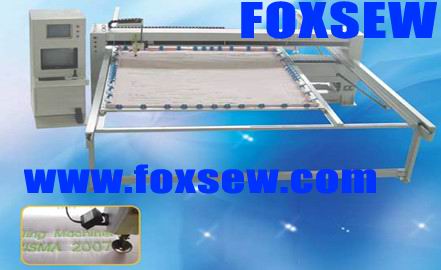

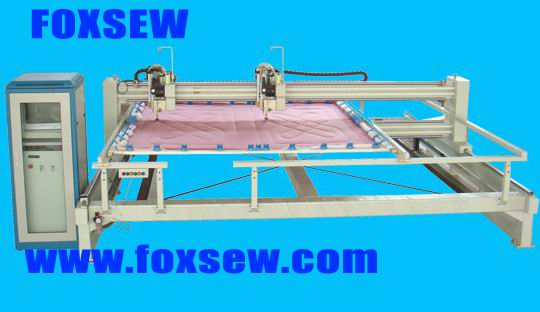

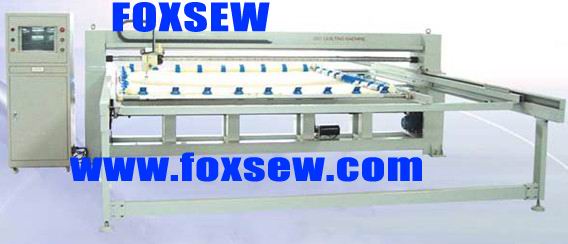

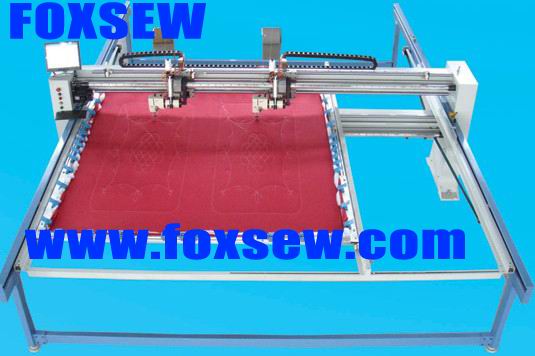

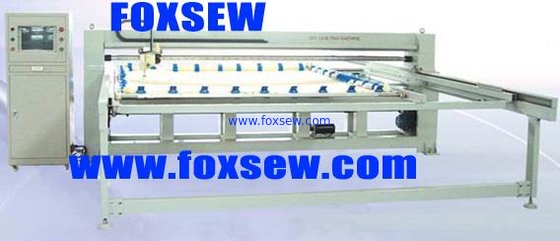

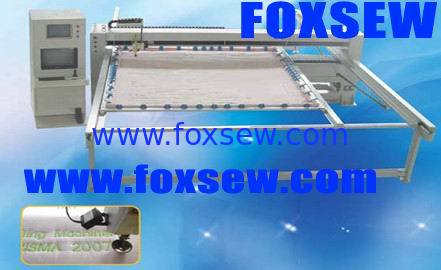

- Product Images: Multi-Head Computerized Quilting Machine
