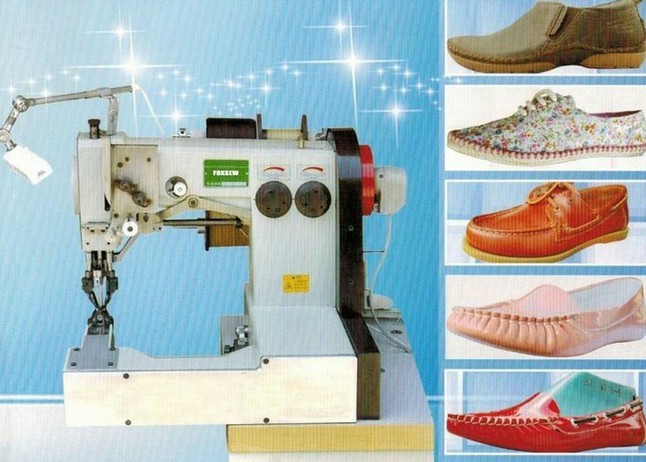

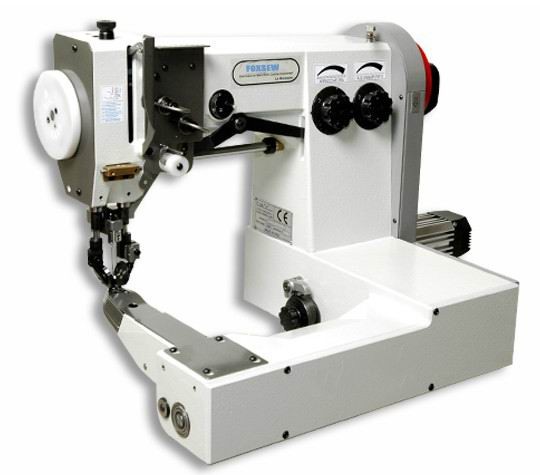

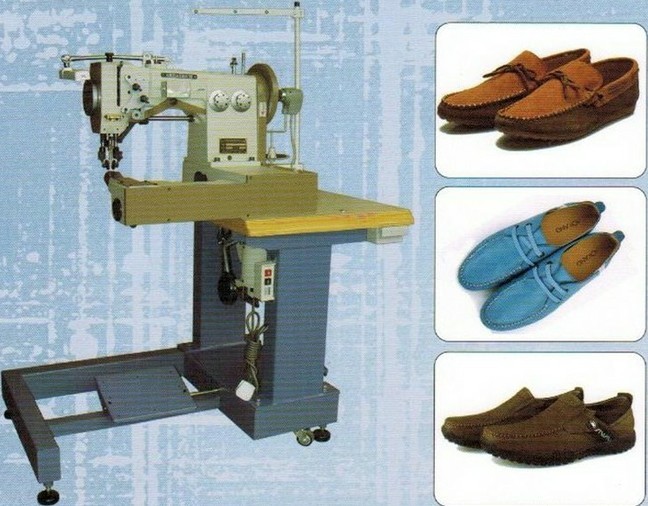

Stitching Machine for Tubular Moccasin FX-M781

Place of Origin	CHINA
Brand Name	FOXSEW
Certification	CE
Model Number	FX-M781
Minimum Order Quantity	1 PCS
Packaging Details	CARTONS
Delivery Time	7 DAYS
Payment Terms	T/T ,L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Leave a Message

Product Description

Characteristics:

Stitching machine for tubular moccasin with 1 set-up upon request. Machine with projected arm for stitching overlapping tubular moccasins - with differentiated aligned drop feed with one or two needles pre-settable and adjustable manual ruffling by knee control during working. The machine is equipped so as to make 11 different types of seams. Also it can sew mounted moccasins. The machine is designed for tubular moccasin sewing. 12 sewing patterns can be set according to operator’s requirement. All parts were manufactured by HAAS CNC machines, high precision machining parts. Using electronic speed motor speed can be flexible, stop the needle position by computer control.

Stitching Machine for Tubular Moccasin FX-M781 0

Specifications:

Sewing Speed	400 r.p.m
Stitch Length	0-8 mm
Needle Spacing	6 mm
Sewing Needle	DD*1
Motor	750W/220V Single Phase 50/60HZ
Net Weight/Gross Weight	180KGS/240KGS
Packing Size	13178144 CM

Stitching Machine for Tubular Moccasin FX-M781 1
