Double Sewing Heads Serging Machine FX-KB-2A

Place of Origin	CHINA
Brand Name	FOXSEW
Certification	CE
Model Number	FX-KB-2A
Minimum Order Quantity	1 PCS
Packaging Details	CARTONS
Delivery Time	7 DAYS
Payment Terms	TT, LC

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Leave a Message

Product Description

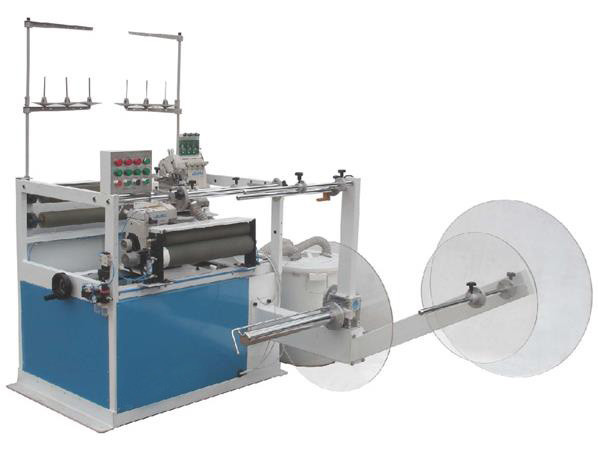

Features: Double Sewing Head Serging Machine is mainly used to double serge mattress side panel. It has two independent sergers, synchronization of them is controlled by two AC motors with frequency converter velocity modulation, the machine has two servo drive variable speed puller with long lasting urethane rollers, material tensioning device, and re-winder. Machine has excessive material auto-cutting device along with a vacuum scrap-collection device. Additionally, it is equipped with thread break detection device as well as material splice auto-stop device. It is used for flange the mattress fabric. It has two independent flanging/sewing head, flanging/sewing head driving by inverter, feeding by the polyurethane rollers, winding synchronously, auto-cutting excessive material. Additionally, it is equipped with a waste-collecting device by vacuum, thread broken detection device and material splice auto-stop device.

Double Sewing Heads Serging Machine FX-KB-2A 0

Specifications:

Model No.	FX-KB-2A
Serging Mode	Single Border, Dual Border
Sewing Width	5-7 mm
Serging Width	150-500 mm (adjustable)
Serging Speed	15-30 m/min (adjustable)
Max. Material Thickness	20 mm (middle density)
Needle Pitch	0-6 mm (adjustable)
Max. Presser foot lift	15 mm
Rated Air Pressure	0.5-0.8 Mpa
Power	2.5 KW

Double Sewing Heads Serging Machine FX-KB-2A 1
