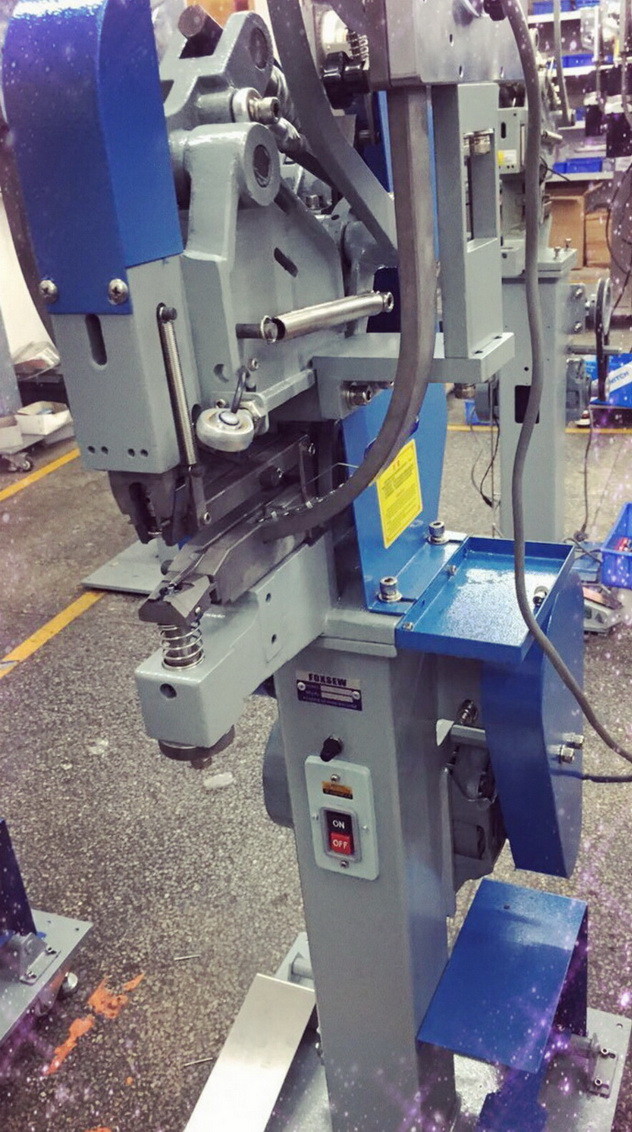

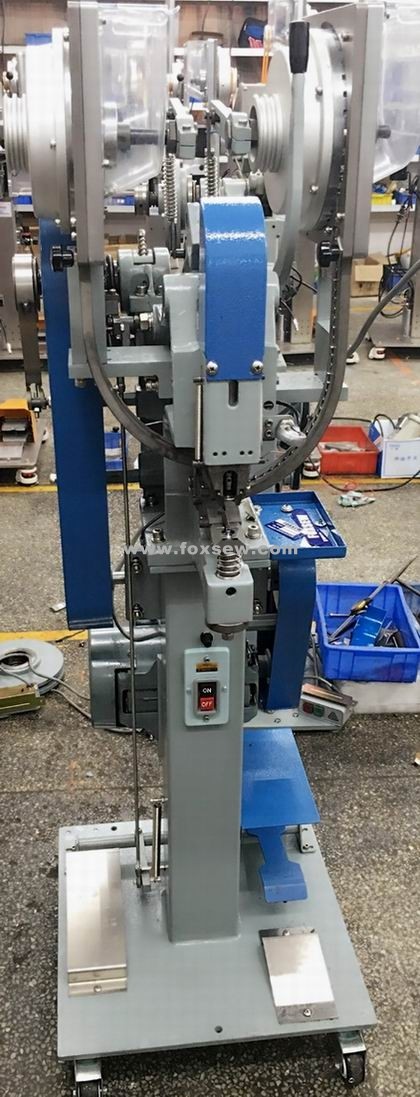

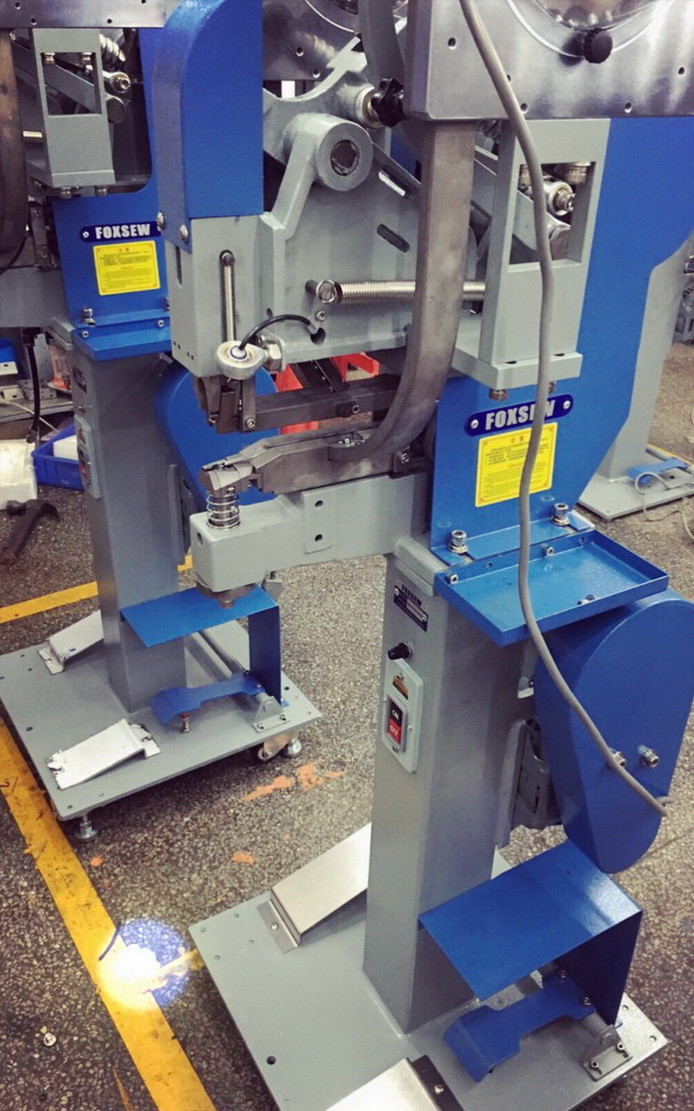

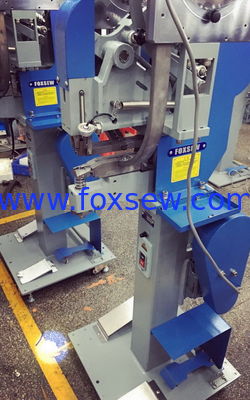

FOXSEW Fully Automatic Snap Button Attaching Machine
Applications: Children’s clothes, Jeans, Down Jacket, Casual Shirts, Leather Handbags, etc...
Working Video: www.foxsew.com/company-video/automatic-snap-button-machine-409.html
Mechanical Properties: By changing the mold parts can hold other buttons.
Mechanical Stroke: the stationary mold, pressing down on the mold.
Automatic feeding button to mold, manual button, safety does not hurt the hand.
Fast play button 4 to 6 times, every day can play button 15000-35000 pcs.
Have automatic buffer device, fabric thickness not die height adjustment.
Jeans button at the bottom of nail is changeless, button face true diameter 15 to 21 mm can general, only need to change the play button mold (other size need to be customized), specific the words and patterns to direction of jeans buttons, deviation in the plus or minus 2 degrees.
Specifications:
| Model NO. |
FX-70S |
| Drive Mode |
Motor Drive |
| Power |
0.37 KW |
| Voltage |
110V/220V |
| Working Pacing |
160 PC/Min |
| Operating Height |
815 mm |
| Stamping Force |
90 mm |
| Weight |
115 KGS |
| Packing Size |
420x420x1260 mm |
