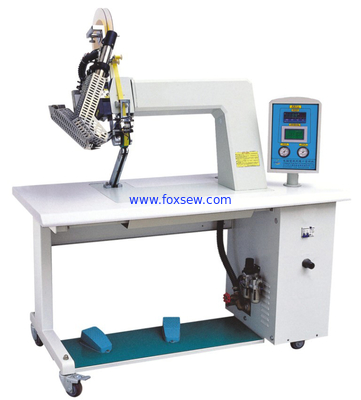

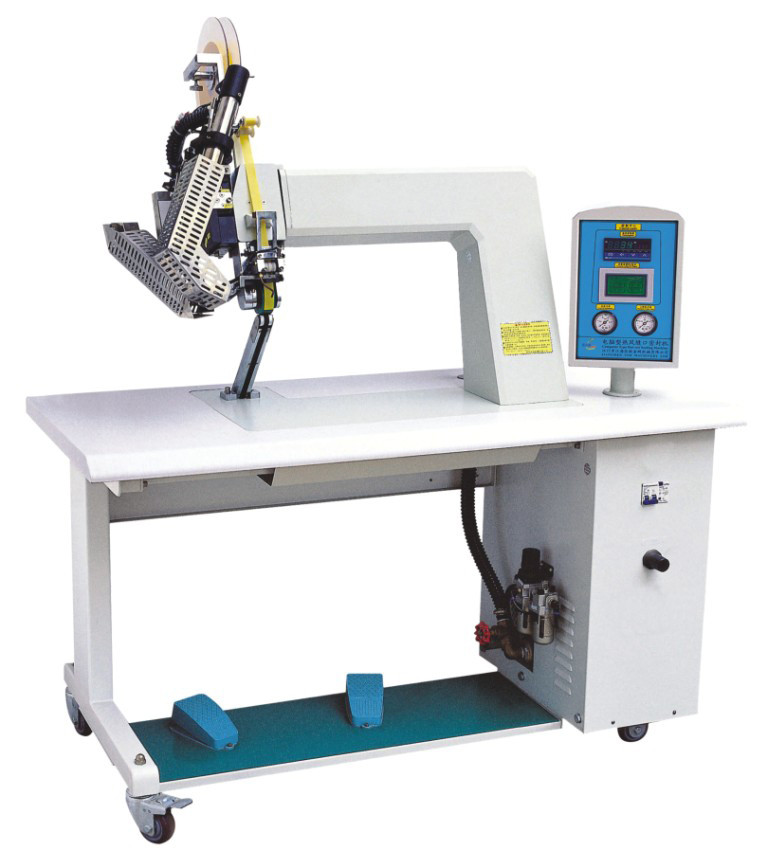

Hot Air Seam Sealing Machine FX-V3

Hot Air Seam Sealing Machine FX-V3

China Hot Air Seam Sealing Machine FX-V3 supplier

Large Image :  Hot Air Seam Sealing Machine FX-V3

Product Details:

Place of Origin: CHINA
Brand Name: FOXSEW
Certification: CE
Model Number: FX-V3

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Packaging Details: CARTONS
Delivery Time: 7DAYS
Payment Terms: T T, LC
Contact Now
Detailed Product Description

Features:

1.Controlled by programmable PLC with HMI Soft-touch display, process can be modified according to users’ requirements

2. Auto controllable temperature, highly stability, temperature vary between ± 2º C, the upper limit temperature with alarming device.

3. Synchronous moving with up and down pressing wheel chain.

4. To design controlling by feet at ease, suitable for long working according to physical Dynamics.

5. Be possible of working 24 hours continuously and produce highly efficiently.

6. Unique heated tube, unique wind machine supplying with wind, absolutely no water and oil.

7. Auto slightly fading function.

8. Auto clipped tape, sending tape and auto completed, to decrease the wastage of material.

9. Unique device with the down column suitable of any sizes of products close sealing pressure belt.

10. Super-thin lower arm is specially to produce small size products like shoes, gloves, caps, and so on

Hot Air Seam Sealing Machine FX-V3Hot Air Seam Sealing Machine FX-V3

Specifications:



Model

FX-V3

Power

110V/220V 50/60HZ

Rating Power

2800W

Heat Control

Room Temperature~700°C adjustable without bands

Speed

2-18m/min infinity variable

Air Supply

0.35~0.5 Mpa

Width of Pinch Roller

Standard: 25mm mill finish, steel grain, straight grain to be chosen according to demand

Width of Seam Sealing Tape

14mm-22mm standard, others are available according to requirements

Packing Size

1300x600x1530 mm

Weight

167 kgs

Prevention Against Jumping over sewing work

There are adjustable devices to prevent the gun from jumping over the seamed sections when the gun is moving inward with the idle wheel starting, or when the gun moving outward with the idle wheel stopping

Hot Air Seam Sealing Machine FX-V3
