Characteristics:
1. Exquisite stitches, reliable floriation sewing.
2. Highest sewing speed 2,700rpm (Using the stitch length of 3.5mm)
3. Strong frame needle penetrating to easily position the textiles.
4. Using big presser foot of two steps descending to easily position the textiles.
5. Low power consumption, economical and practical.
6. Sewing completely according to stitching data.
7. Raising amount of the presser foot can be adjusted easily by the operation board.
8. It uses the simple program editor PD-300(options).
9. High Speed Sewing With Fair Lines Achieves The Fastest Sewing Speed In The World,
Excellent Sewing Quality And high efficiency as well as energy saving.
10. Adopting servo control and textile feed device with enhanced rigidity, thus, high-exquisite
patterns can be sewed, even while sewing with high speed or sewing thick textiles, bad stitches
and deviation problems which often occur to computer floriation machines would not exist.

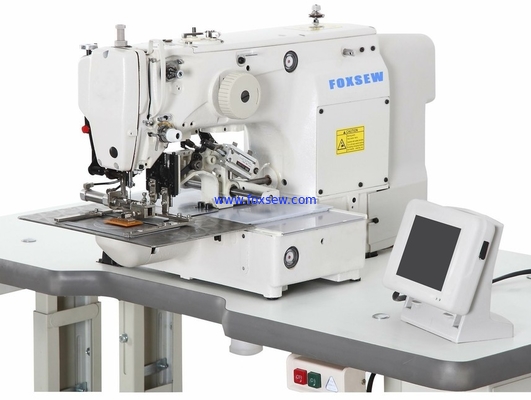

Specifications:
|
Model NO. |
FX-210D |
|
Stitch Type |
Single Needle Lockstitch |
|
Working Area |
130 X 60 MM |
|
Max. Sewing Speed |
2700 r.p.m |
|
Speed Setting |
200-2700 r.p.m |
|
Feeding Mode |
Intermittent, continuous feeding (switchable) |
|
Stitch Length |
0.1-12.7 mm (min. resolution 0.1 mm) |
|
Expansion, Zoom out function |
10-200% for X axis and Y axis respectively (min. resolution 0.1%) |
|
Max. needles |
8000 needle/pattern |
|
Needle |
DP*17 (#18) |
|
Rotating Shuttle |
Semi-rotation double rotating shuttle |
|
Work Holder lift |
25-30 mm |
|
Stepping foot lift |
20 mm |
|
Stepping foot stroke |
4-10 mm |
|
Presser foot type |
Air Pressure Type |
|
Spindle Motor |
400W Direct drive return servo Motor |
|
Weight |
120 KGS |
|
Packing Size |
1200 X 860 X 1170 MM |
