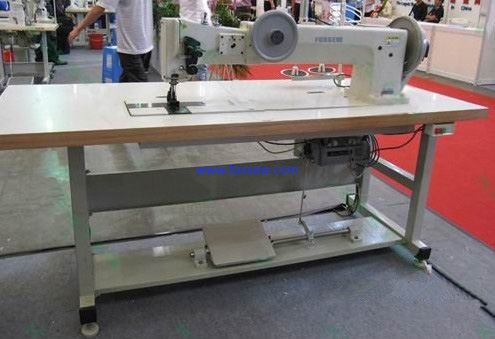

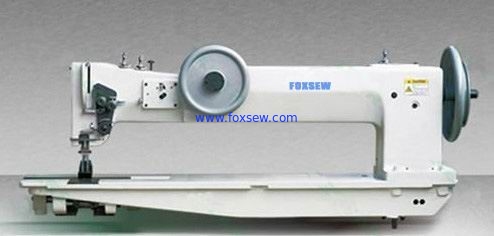

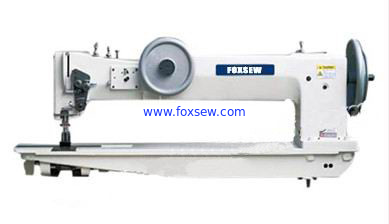

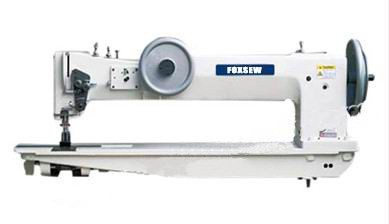

Long Arm Extra Heavy Duty Compound Feed Lockstitch Sewing Machine FX28BL30-2

Large Image : Long Arm Extra Heavy Duty Compound Feed Lockstitch Sewing Machine FX28BL30-2

Product Details:

Place of Origin:	CHINA
Brand Name:	FOXSEW
Certification:	CE
Model Number:	FX28BL30-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Packaging Details:	CARTONS
Delivery Time:	7DAYS
Payment Terms:	T/T,L/C

Contact Now

Detailed Product Description

Stitch Formation:	Lock Stitch	Mechanical Configuration:	Flat-Bed
Type:	Long Arm Extra Heavy Duty Compound Feed Lockstitch Sewing Machine

FOXSEW FX-28BL30-2 Double Needle Long Arm Extra Heavy Duty Compound Feed Lockstitch sewing machine is used for sewing extra heavy-duty materials such as canvas, vinyl, leather, synthetics, and various coated, laminated and rubberized fabric. Suitable for sewing auto products (air-bag, seat cushions, life belt, etc.), handbags, baseball gloves, sports apparatus, tents and other extra heavy-duty products.

Features:

Big working space suitable for sewing large size materials such as tens and sail clothes.
Big imported vertical extra large rotating hook, with automatic lubrication.
Compound feed and walking foot mechanism assures feeding of all kinds of materials, even mutilayered materials.
Safety clutch prevents the hook from being damaged.
Automatic presser foot, reverse and needle position could be achieved with special equipment.

Specifications:

Model	FX-28BL30-2
Max. Sewing Speed	1200 rpm
Max. Sewing Thickness	17mm
Stitch Length	10 mm
Needle Bar Sroke	47.3 mm
Presser Foot Life	20/23 mm
Needle Size	DYX3
Needle Number	2
Needle Guage	12.7mm standard
Rotating Hook	Large vertical Hook
Working Space	762x153mm
Packing Size	300X640X380mm
Weight	126 kgs

Long Arm Extra Heavy Duty Compound Feed Lockstitch Sewing Machine FX28BL30-2
